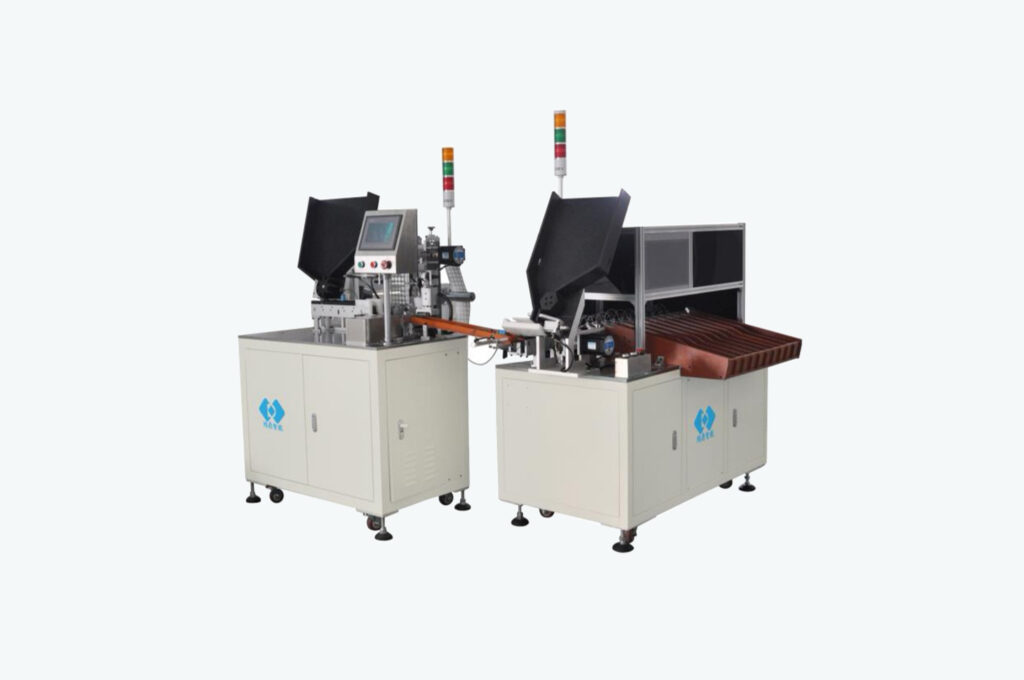

Servo motor driving precision welding head
Working stroke:500*400mm
Welding 0.1-0.5mm
Professional water cooling system
Reciprocating accuracy 0.02mm
High-precision welding head,soft and stable welding pressure
Main parameters
| Working track | X direction 0-500mm:up to 26 PCS 18650cellsY direction 0-400mm:up to 21PCS 18650cells |
| Max welding number | 546pcs (standard 18650 lithium cells) |
| Rotated welding head | Support, optional |
| counting | support |
| Device power supply | 220V 50/60Hz |
| Power consumption | Be busy at 0.8kw and idle at 0.2kw |
| Power capacity | 1.2kW(power contained) |
| X Y-axis drive mode | 400W Separate Control of Hybrid Servo Motor |
| Transmission mode | Inlet straight rail and ball screw |
| Welding head pressure | 1～4kgf |
| Secondary pressurization | 1～20kgf |
| Operation mode | Automatic continuous / single point / single step optional |
| Electrode material | Red coppor，alwaysφ3.0mm，Φ6.0mm\φ1.8mm is optional |
| Type of cooling | Water circulation cooling. |
| Accuracy of position reciprocating | 0.02mm |
| Moving speed | 500mm/sec |
| Number of file groups that can be stored | 999 groups |
| Welding platform load | 60kg |
| Welding source | Compatible with domestic and imported welding sources. |
| External dimension | 1000×800×1620(L*W*H) |
| Weight | 180kg (The power is not contained) |
